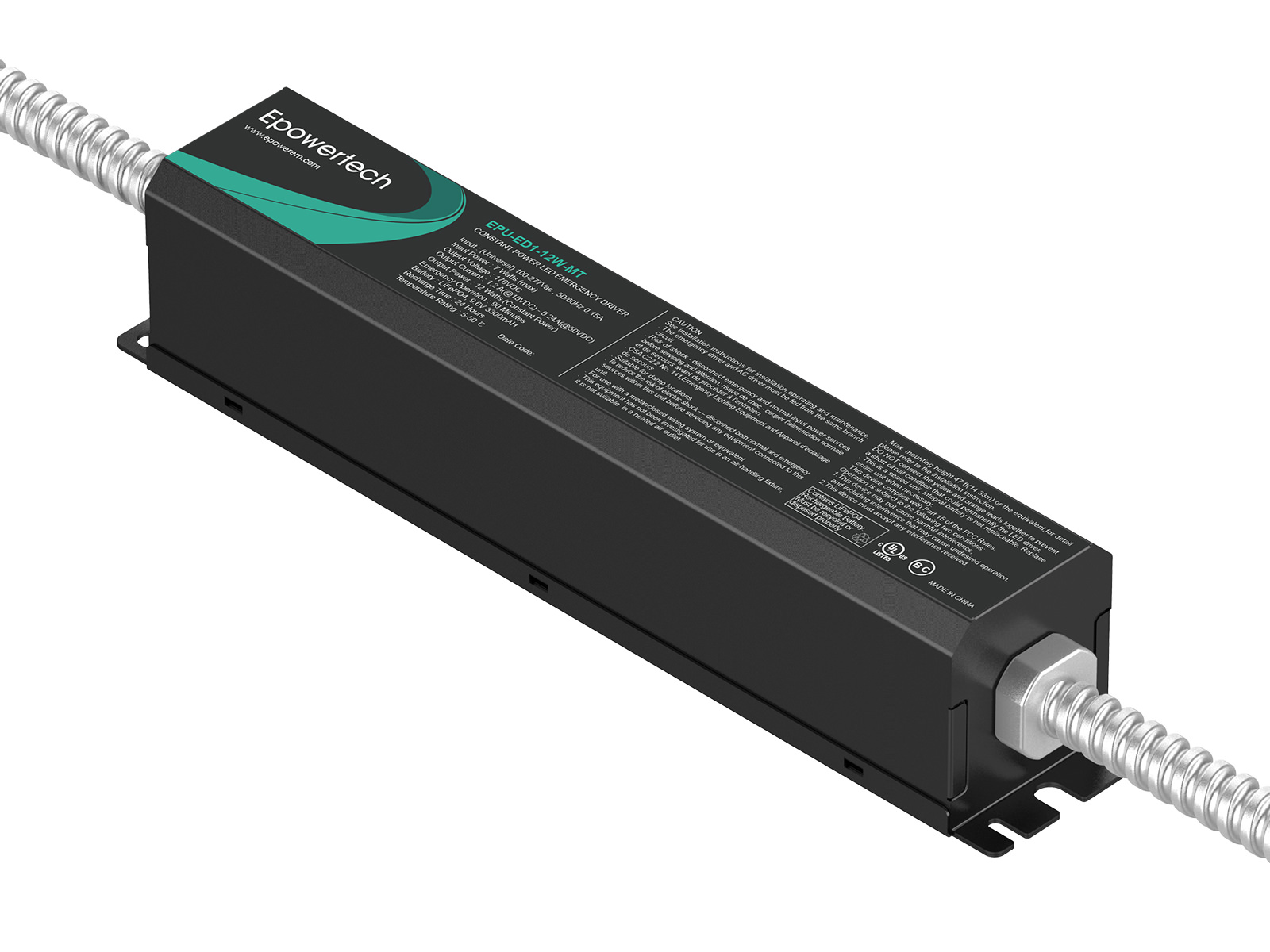

EPU-ED1 (integrated)

Constant Power LED Emergency Driver

Optional emergency power options of 8W, 12W, and 25W available Available optional emergency power at 8W, 12W, and 25W
UL924 and CEC listed for both field and factory installation UL924 and CEC Listed for both field and factory installation
Ambient temperature rating: Up to 50℃

Certificate:

Model	EPU-ED1-8W-LV	EPU-ED1-12W-LV	EPU-ED1-25W-LV
Output Power	8W	12W	25W
Output Voltage	10-50V	10-50V	18-50V
Input Current	≤0.1A	≤0.15A	≤0.15A
Input Power	5W	7W	7W
Input Voltage	100-277V AC	100-277V AC	100-277V AC
Illumination Time	≥1.5H	≥1.5H	≥1.5H
Battery	LiFePO4 6.4V 3300mAh	LiFePO4 9.6V 3300mAh	LiFePO4 9.6V 6600mAh
Temperature Rating	5℃~50℃
Warranty	3 years
Certificate	UL LISTED & CEC Title 20
